Cracking the Code of TPO Color-Changing Technology for Automotive Interiors

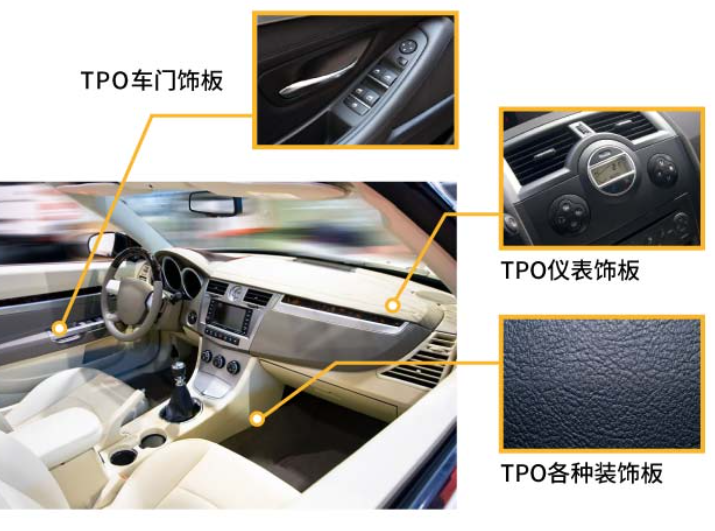

TPO (Thermoplastic Olefin) leather is a blend material of polypropylene and ethylene-propylene rubber (EPDM) and other elastomers, because of its Lightweight, low VOC, excellent weather resistance, and 100% recyclable and other advantages, it has become the mainstream material for automotive interiors, widely used in dashboards, door panels, pillar trims, seat covers, and other components.

However, TPO color reform faces a core barrier: Surface nonpolarity is extremely strong 。 Common coatings such as polyurethane and acrylate cannot form strong adhesion on untreated TPO surfaces; the adhesion test often shows 0 grade. Starting from the material properties of TPO, this paper systematically analyzes two color-changing paths during the production stage: coloring and post-treatment coating, along with key technical points.

Material Characteristics and Challenges in Color Change

TPO is usually done by Crystalline polypropylene (PP) and ethylene-α-olefin elastomers blended together, with PP accounting for about 60~70% and elastomer about 30~50% in typical formulations. This “non-polar + non-polar” structure gives the material excellent chemical inertness—it is both the foundation of weather resistance and chemical resistance, and the reason color-changing coatings struggle to adhere.

The core challenges of color change can be summarized in two points:

Types of difficulties	Specific performance	The root
Poor surface adhesion	Water-based/solvent-based polyurethane coatings cannot wet TPO surfaces and the coating is prone to peeling	TPO has low surface energy (often < 35 mN/m), so coating agents cannot form effective chemical bonds
Plasticizer migration (relatively slight)	After long-term use, additives may precipitate on the surface, affecting the stability of the coating film	TPO plasticizer content is much lower than that of PVC, so the issue is not prominent but still requires attention

Color Change Material System

Coloring materials during the production stage—masterbatches

This is the most mature and thorough coloring method for TPOs. During production, masterbatch is mixed with TPO substrate by injection molding, with color spreading across the material cross-section.

Masterbatch system ：

      Carrier resin : Uses highly compatible resins (such as PP carriers) with the same substrate as TPO to ensure excellent fusion, no delamination, and no precipitation

      Coloring components : Automotive-grade low-migration, high-color-rendering pigment

      Functional additives : Low VOC dispersing additives, heat stabilizers, scratch-resistant modifiers

Key indicators : Low-VOC masterbatches must meet automotive interior environmental standards such as GB/T 27630 and VDA 277, with extremely low content of harmful volatile substances such as aldehydes, ketones, and benzene series.

 Post-treatment coating materials

When natural color coloring cannot meet personalized needs, surface coating is required on the finished TPO product. The core material system includes:

      Solvent-based polyurethane topcoat : Modified coatings containing chlorinated polyolefin (CPO) adhesion promoters; the polar chlorine atoms of CPO can effectively anchor to the TPO surface

      Chlorinated polyolefin (CPO) primer : Acts as an adhesion promoter layer, enhancing the wetting and bonding of topcoat on TPO surfaces

      Water-based polyurethane coating agent : Environmental protection direction, but requires surface pretreatment or specialized primer

The patented technology indicates that it is added to the topcoat Chlorinated polyolefins or hydrogenated polybutadienediol As an adhesion promoter (wet solid content 5~30%), it can significantly improve the adhesion fastness of coatings to modified TPO.

Color Change Process Route

Mold-in-Color (Optimal Performance Solution) in Production Stage

This is the preferred coloring method for automotive interiors (TPO), with color running through the material cross-section, and its scratch and wear resistance far exceeds that of surface coatings.

Process flow : Masterbatch + TPO substrate blending → injection molding → products

Key process points ：

      The amount of masterbatch added must be precisely controlled to ensure uniform color and do not degrade the rigidity and toughness of the substrate

The TPO coating formula contains about 1~4 parts pigment, combined with 1~4 parts light stabilizer, balancing color and weather resistance

      By combining modified TPO particles (free radical initiators crosslinked with organosilane co-linking), light transmission properties and shape memory functions can be achieved for multilayer structural interior materials

Post-treatment coating and color alteration process

When natural color coloring is not feasible or color changes are needed, surface coating is applied to the TPO finished product.

Path 1: Formulation modification—can directly apply TPO

Addressing adhesion issues at the material source, that is, adding polar modified components to TPO formulations:

       Additional Oxidized polyethylene wax (Acid value≥ 15 mg KOH/g) or Maleic anhydride grafted onto polypropylene , introduces polar groups during blending to enhance TPO surface energy

       Adopt The amino-terminated polyether reacts with maleic anhydride grafted into PP , grafting the TPO molecular chain onto polar terminal bases, allowing polyurethane coatings to adhere directly without the need for a primer

Path 2: Surface Pretreatment + Coating (Standard Solution)

Suitable for post-treatment coating of ordinary TPO products. The core is to improve TPO surface polarity through physical or chemical means:

Process flow : Surface pretreatment → primer application → topcoat application → curing

Key points of each step ：

Surface pretreatment (Optional but highly recommended):

      Ionization gas treatment : By using ionized gases of argon or oxygen to modify the TPO surface, nanoscale etching and polar groups (-OH, -COOH) are formed, increasing surface energy to over 60 mN/m

      Flame treatment : An economically used industrial solution that improves surface polarity through high-temperature oxidation

Primer application ：

       Coating Chlorinated polyolefin (CPO) primer , with a dry film thickness of about 1.0 mil

       The CPO layer acts as a “bridge,” anchoring the non-polar TPO surface at one end and binding with polar groups in the topcoat at the other end

Topcoat application ：

       Spraying solvent-based polyurethane topcoat (with or without CPO adhesion promoters)

       Typical curing conditions: Bake at about 121°C for more than 20 minute

Multi-layer coating (High chemical resistance requirements):

     Adopts a three-layer surface coating design: bottom layer improves adhesion (CPO), middle layer acts as a barrier (cross-linked fluorocarbon/polyurethane composite coating), and surface layer is dense and impermeable (silicone resin).

Multicolored Pattern Craft (Decorative Color Change)

In recent years, TPO interior materials have continuously expanded in terms of color, allowing multicolored coatings to achieve multicolored pattern effects:

      Structure : Surface treatment layer → multicolored patterned layer → TPO film layer → PP foam layer

     Craftsmanship : Several colored coatings (polyurethane acrylic resin + color powder, UV curing) are sequentially applied to the TPO film layer to form patterns, then covered with a surface protective layer. After modification, the TPO coating has light transmission and shape memory functions; the colorful patterns can return to their original form after deformation, maintaining the visual effect for a long time.

Process Analysis and Common Issues

Adhesion Issues (the Core Pain Point)

Problem manifestations : Coating peeling and cracking, especially worsened in high temperature and high humidity environments.

Solution ：

      Priority should be given to natural coloring : Avoid adhesion issues at the source

      Formula modification : Added oxidized polyethylene wax or maleic anhydride grafted onto PP to improve TPO’s self-coatability

      Pretreatment : Ionizing gas treatment raises surface energy to over 60 mN/m, significantly improving coating wetting

       Primer + CPO adhesion promoter : Classic solution, highly effective for high bending modulus TPO (>1000 MPa).

VOC and Environmental Protection Requirements

Problem manifestations : Solvent-based coatings have high VOC emissions, making it difficult to meet the stringent environmental standards of automotive interiors.

Solution ：

       Uses low-VOC masterbatch for natural coloring, reducing solvent usage at the source

       Water-based polyurethane coatings are gradually replacing solvent-based coatings, but adhesion issues with TPO need to be addressed

       Control of volatile substances such as aldehydes, ketones, and benzene compounds in raw materials, meeting standards such as VDA 277

Weather Resistance and Anti-Aging

Problem manifestations : Interior parts may fade and yellow, exposed to light and high temperatures for extended periods.

Solution ：

      The masterbatch formula contains a blocked amine light stabilizer and a phosphite antioxidant

      Use pigments with excellent weather resistance (such as phthalocyanine-based and rutile-type titanium dioxide)

     Added anti-migration antioxidants to prevent aging additives from precipitating and causing discoloration

Scratch resistance

Problem manifestations :TPO has relatively low surface hardness and is prone to scratches.

Solution ：

      Preferred scratch-resistant modified TPO formula: metallocene-catalyzed elastomer combined with low-gloss TPO, with minimal gloss change after 18N load scratch testing

Nano silica and silicone wear-resistant additives are added to the surface treatment layer to enhance wear resistance

The core of the TPO leather color change process is to break through the adhesion bottleneck of “non-polar surfaces,” while meeting the stringent environmental and weather resistance requirements of automotive interiors. Mold-in-Color is the optimal solution — Color spreads across the material cross-section, thoroughly avoiding adhesion issues. Combined with low-VOC masterbatch and weather-resistant color powder systems, it achieves environmental protection, durability, and cost control simultaneously. When post-treatment coating is unavoidable, the classic route of ionization gas treatment/flame treatment + CPO primer + polyurethane topcoat can achieve effective adhesion. Material source modification (adding oxidized polyethylene wax or maleic anhydride grafted PP) can achieve “direct coating TPO,” eliminating the need for the primer process. In the future, TPO color changes will continue to iterate along two directions: “no-paint natural coloring” and “high-adhesion water-based coating.”
